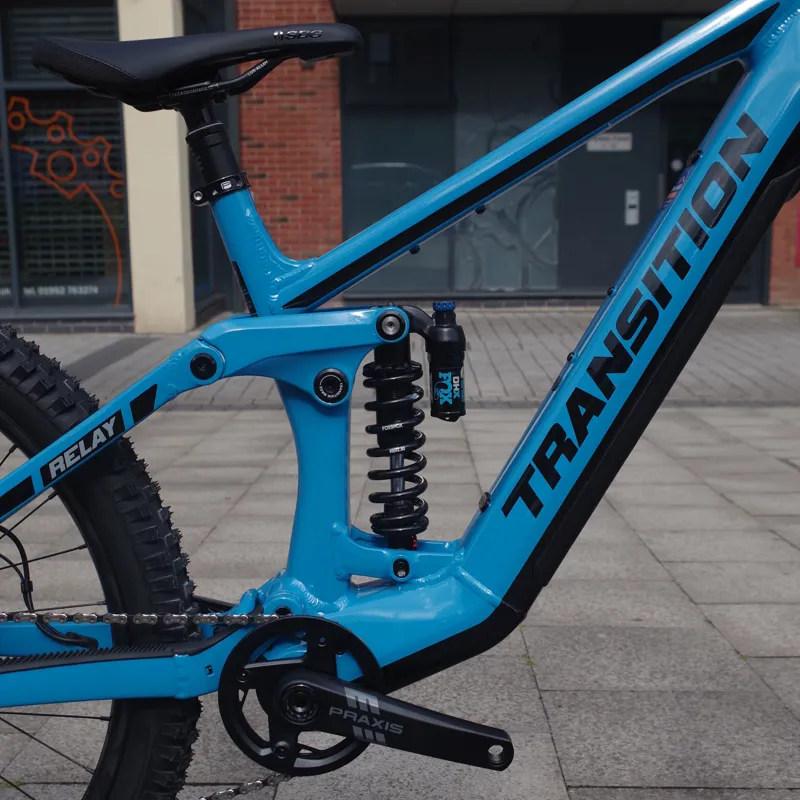

Transition Relay PNW Alloy GX Large Electric Mountain Bike in Tr Blue

Season:2023

Brand:Transition

Code:ULBrTXG.YLA.WNP.YALER.32.

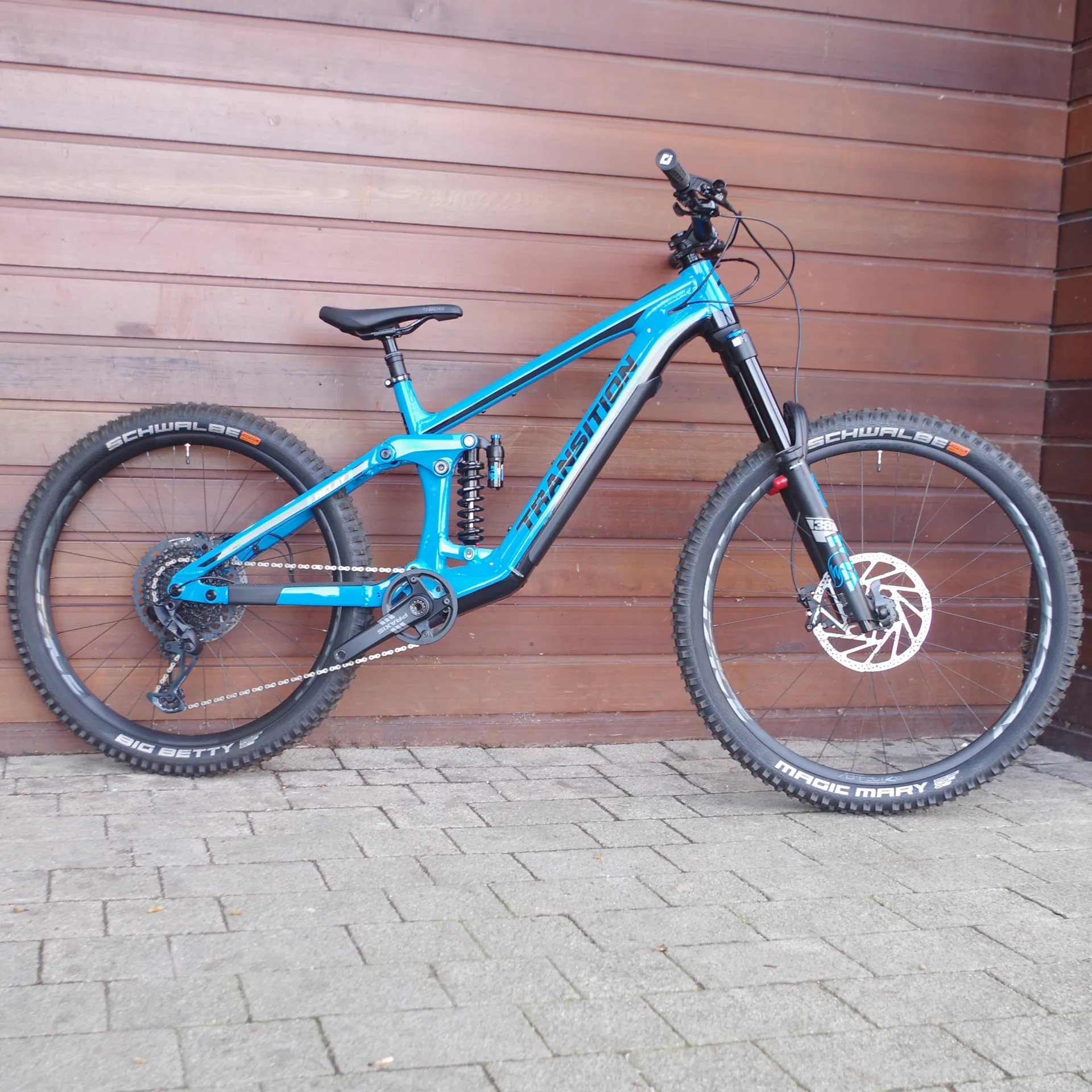

Last one, ex display, inviframe already fitted and tubeless set up included.

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.


Always wanted a bike that could provide both an electric and non-electric experience in one chassis? The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

Features:
  • Full of modularity, the Relay can be ridden with the battery installed and powered, or removed, which transforms it into a regular mountain bike. Its versatility allows you to take it on a road trip where your plans include riding in areas that are legal for eMTB's, and also areas that do not allow eMTB's. The tool free battery door allows you to remove and reinstall the battery in a matter of seconds.
  • Starting at 42.5lb/19.27 kg with the battery and 37.5lb/17.01kg without the battery, every Relay is purpose built with components to be ridden hard.


FAZUA RIDE 60 MOTOR

The lightweight 60Nm Fazua Ride60 drive unit weighs 4.3lb/1.96kg. The minimal drag and power to weight ratio provide the magic when not riding with power. As you begin to ride beyond the speed cutoff you're not penalized when continuing to push beyond the assistance like that of traditional eMTBs. The 430Wh battery, 60Nm torque, 250 watts continuous power, 450 watts peak power, and overall bike weight work harmoniously together. This all equates to an experience that exceeds what you might expect from its numbers.

FAZUA RIDE 60 BATTERY

The 430Wh battery weighs 4.85lb/2.2kg. It is easily removable via the tool free battery door underneath the downtube. The battery is charged off the bike, which is a bonus for customers with challenging bike storage and charging situations. The tool free battery door makes this hassle free, and it greatly simplifies the frame and door interface making it lighter and more durable.

FAZUA RING CONTROLLER

The simple and ergonomic ring controller adjusts modes with a gentle nudge up or down. Pushing it up increases the power level, pushing it down decreases power level, pushing inward will activate walk mode. Holding the controller up for 2 seconds from any assistance mode will activate a boost mode, giving you peak system power output for roughly ten seconds.

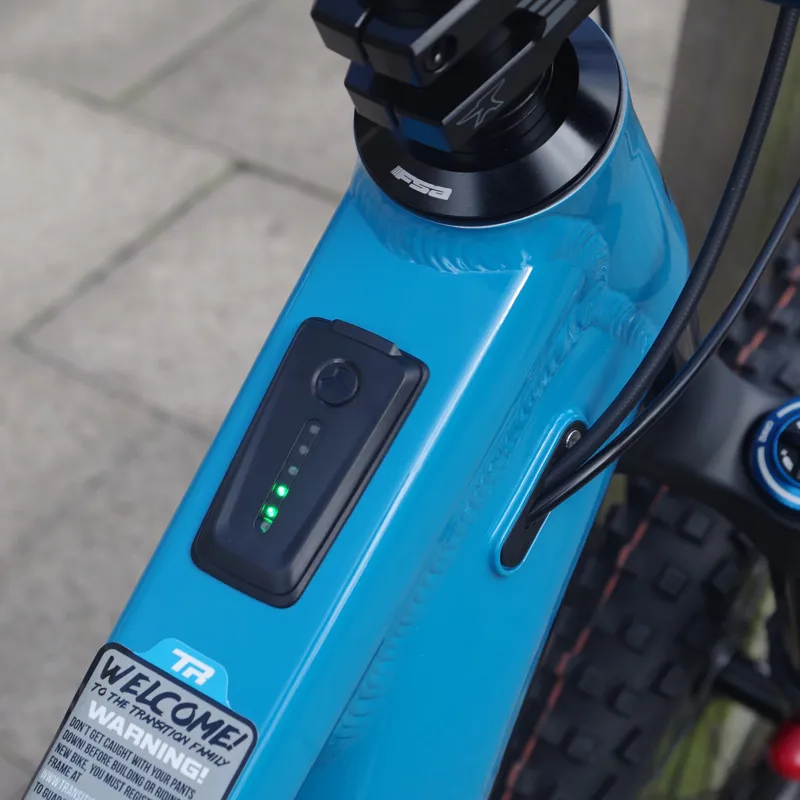

LED HUB

The sleek display on the top tube consists of 5 led lights to give you an indication of power mode and battery life. The Relay has three power modes designated by different LED colors. Breeze mode (Green) is very functional in many situations, and is custom tuned by Transition to use in varied terrain, not just riding to the trailhead. River mode (Blue) is preset to match the amount of energy you are delivering to the pedals. If you're soft pedaling it delivers a minimal amount of assistance. If you're hammering it will give you as much available assistance it can, which provides a very intuitive experience and range management. Rocket mode (Pink) provides maximum power to help you tackle steeper climbs and challenging terrain, it will reduce your range but packs quite a punch.

FAZUA RIDE60 APP

The Fazua Ride60 app pairs to the Relay via bluetooth technology. The Relay comes equipped with our well thought out profile, but you are able to fully customize your settings in all assistance modes. With Max Power and Support Relation you are able to set the maximum mechanical power output and torque in each mode. Support Relation allows you to adjust how much assistance you are given in relation to how much force you apply to the pedals.

Ramp Up allows you to adjust how responsive the system delivers the assistance in each mode. Whether you're an experienced rider looking for the most responsive and powerful setup, or someone who values more distance out of your rides, the app provides a comprehensive array of adjustments to tune your ride to your liking.

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.


XS
RELAY/PNW
SM
RELAY/PNW
MD
RELAY/PNW
LG
RELAY/PNW
XL
RELAY/PNW
XXL
RELAY/PNW
A.REACH410/405430/422460/452485/477510/502535/527
B.STACK (CARBON)590/588615/615628/634637/643646/652655/661
B.STACK (ALLOY)595/593620/620628/634637/643646/652655/661
C.EFFECTIVE TT LENGTH523/532553/564586/597614/631642/665671/696
D.SEAT TUBE LENGTH (CARBON)380390410430460490
D.SEAT TUBE LENGTH (ALLOY)410410410430460490
E.EFFECTIVE ST ANGLE79.7/79.379.1/78.478.4/77.777.8/77.177.3/76.677/76.3
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE560600660720780820
ACTUAL ST ANGLE71/70.671/70.371/70.371/70.371/70.371/70.4
SEAT TUBE OFFSET AT BB909090909090
F.HEAD TUBE LENGTH (CARBON)100100115125135145
F.HEAD TUBE LENGTH (ALLOY)105105115125135145
G.HEAD TUBE ANGLE64/63.664/63.364/63.364/63.364/63.464/63.4
H.CHAINSTAY LENGTH436442/440442/440448/446448/446448/446
I.WHEELBASE1167/11721208/12111244/12471280/12821309/13121338/1341
J.BOTTOM BRACKET DROP15/112525252525
K.ESTIMATED BB HEIGHT340/343350350350350350

Technical Information
  • WHEEL SIZE
    Mixed (X-Small 27.5")

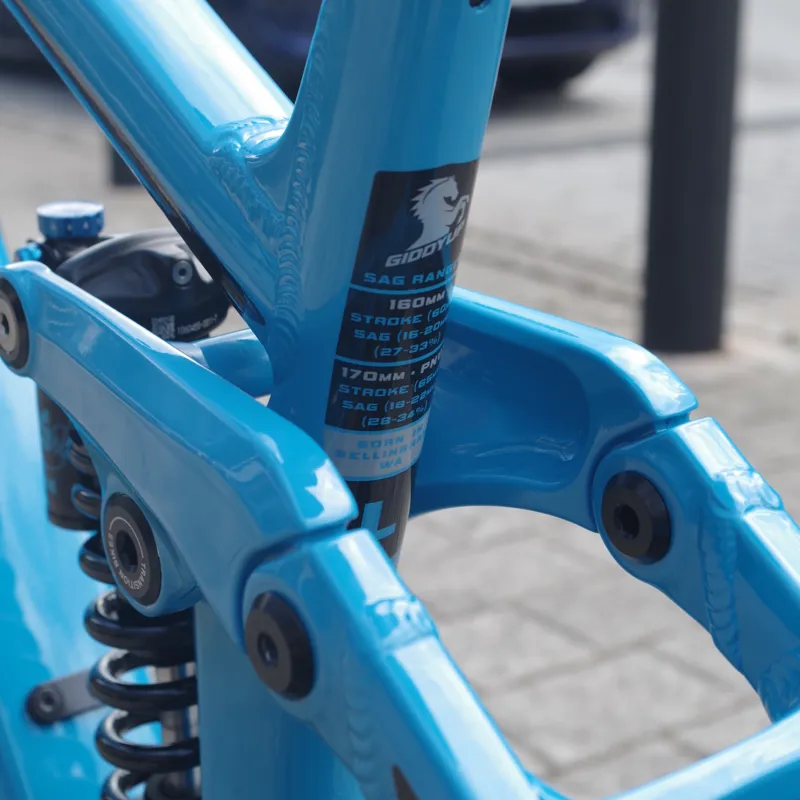

  • FRAME
    Relay Alloy 170mm
  • MOTOR
    Fazua Ride 60
  • BATTERY
    Fazua Energy 430 Take Out

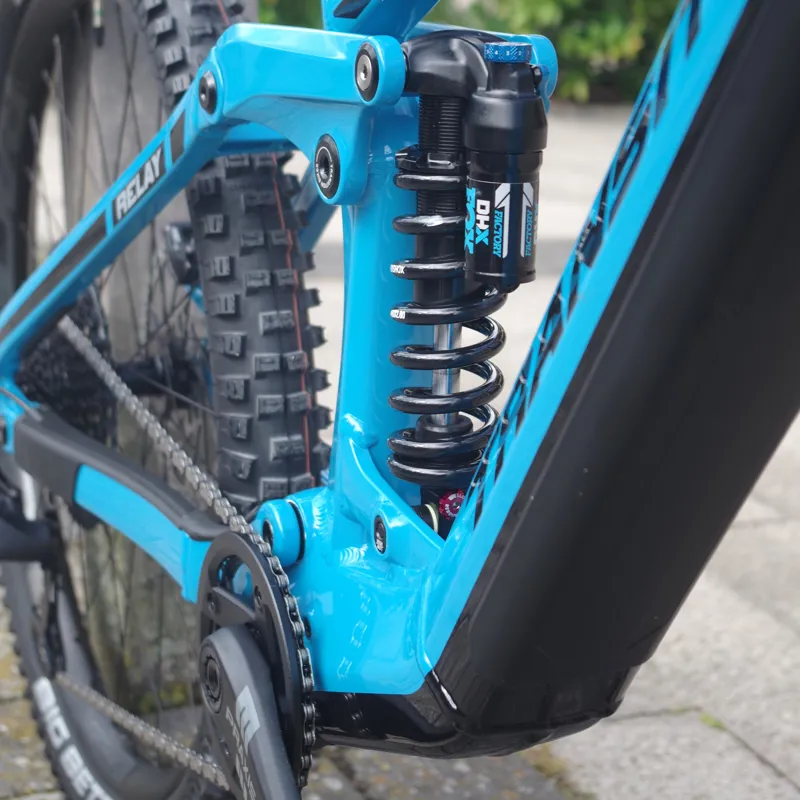

  • REAR SHOCK
    Fox DHX Coil Factory 2 Position (170mm Travel/205x65mm)

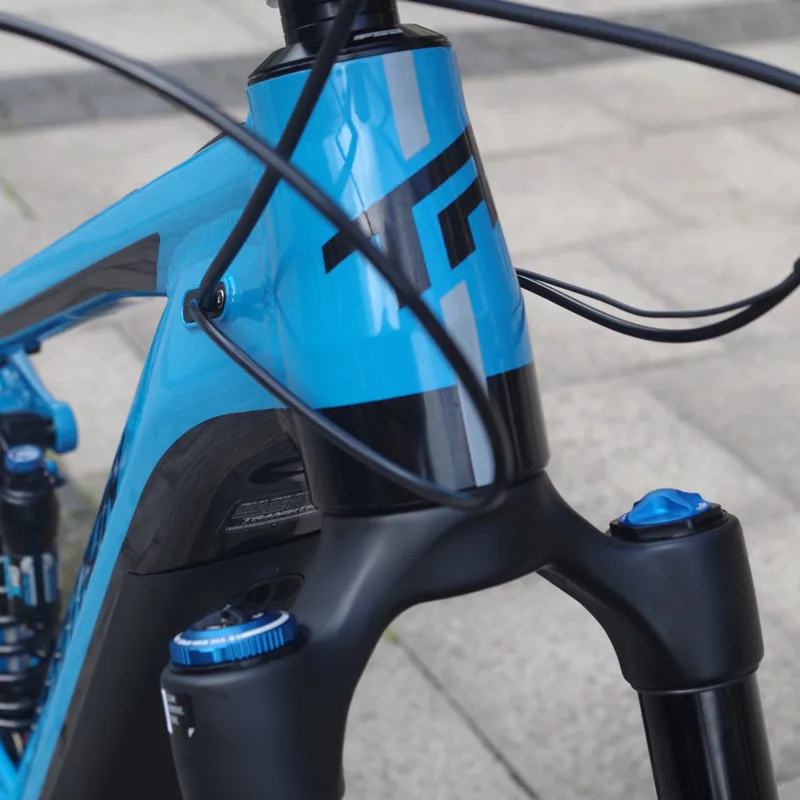

  • FORK
    Fox Float 38 Grip 2 Performance Elite 170mm
  • HEADSET
    FSA No.55R
  • STEM
    ANVL Swage (40mm)
  • HANDLEBAR
    ANVL Mandrel Alloy 35 XS/SM 800x20 / MD/LG/XL 800x30 / XXL 800x40
  • GRIPS
    ODI Elite Flow Lock-On
  • SADDLE
    SDG Bel Air 3
  • SEATPOST
    OneUp Dropper Post 120 XS / 150 SM / 180 MD / 210 LG/XL/XXL

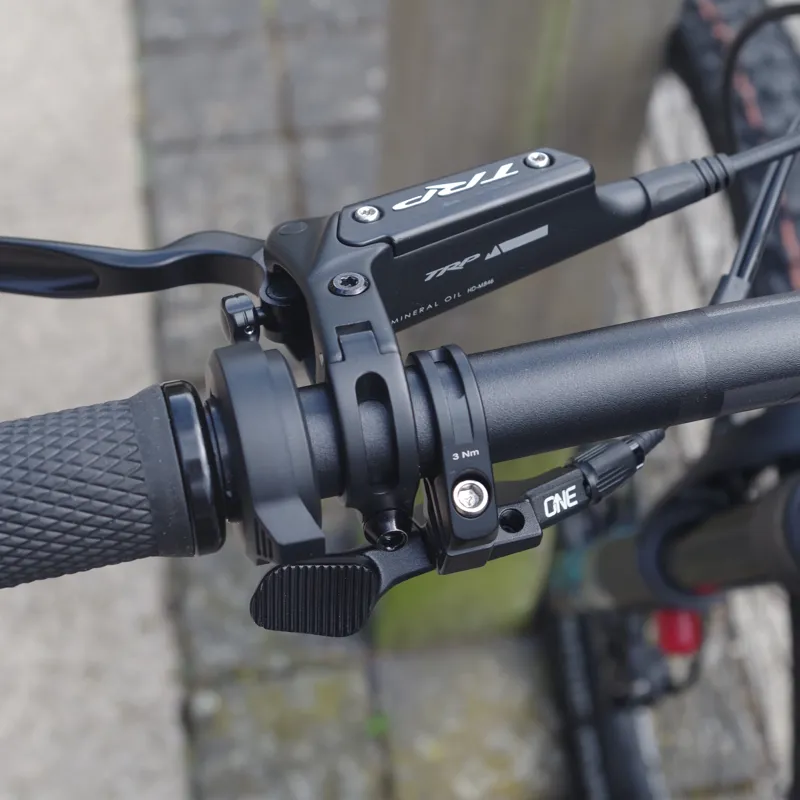

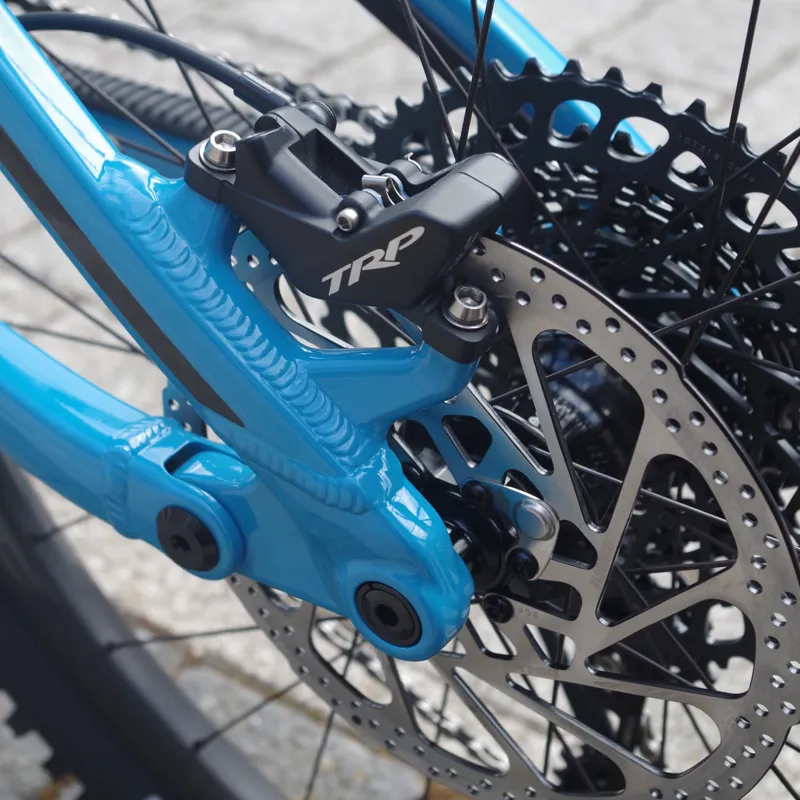

  • BRAKES
    TRP DH-R EVO
  • ROTORS
    TRP R1 2.3 (223/203mm)
  • SHIFTER
    SRAM GX Eagle Single Click

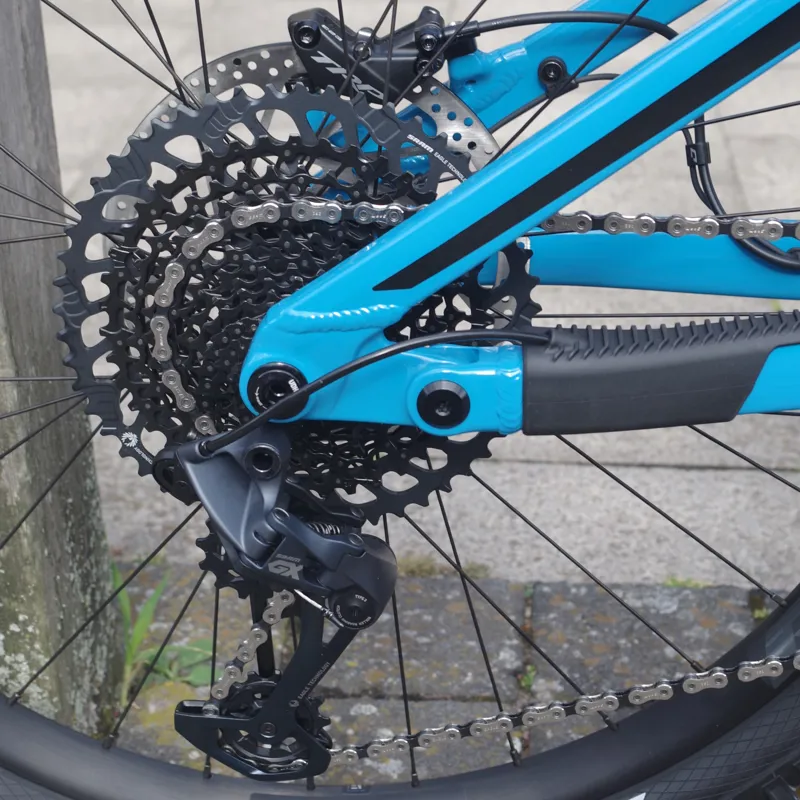

  • DERAILLEUR
    SRAM GX Eagle
  • CASSETTE
    SRAM XG 1275 (10-52t)
  • CHAIN
    SRAM GX Eagle
  • CRANK
    Praxis Alloy ETOR (165mm, X-Small 160mm)
  • CHAINRING
    Transition Bash Spider w/ SRAM 32t Eagle Alloy E-Ring
  • RIMS
    RaceFace Aeffect R
  • SPOKES
    RaceFace 2.0/1.7/2.0
  • HUBS
    RaceFace Trace 28H
  • TIRE/FRONT
    Schwalbe Magic Mary, Super Trail, Soft 2.4
  • TIRE/REAR
    Schwalbe Big Betty, Super Trail, Soft 2.4
  • INCLUDED
    Fazua Charger, Tubeless Valves & Sealant
Sizing Information

Transition Trail bike sizing

Approx rider height range:

5'2"-5'6" Small

5'6"-5'10" Medium

5'10"-6'2" Large

6'2"-6'6" Extra Large

Some sizing notes from Transition:

The days of 120mm stems and 680mm handlebars with bar ends are nearly gone and we feel that an approach to sizing born in that era should go away as well. With progressive trail design and all of the recent changes in bike technology, selecting your frame size is not as cut and dry as it once was. With the huge variety of trail styles, riding styles and bike setup preferences, we would urge you to look beyond your height and inseam to find the right bike size. We want you to have as much fun as possible riding your bike. And in the end we want you to remember, there is no right or wrong size for you (within reason of course).

Take a look at the style of trails you will be riding, and how you would approach them... are they fast and open or tight and technical? Steep or mellow? Do you like to catch air or keep the wheels on the ground? Do you pick the gnarly straight line, or move your bike around on the trail? Did you grow up racing BMX bikes, start off with mountain biking, or get into it from road biking? Want your bike to feel super stable or super agile? All of these factors come into play, and each one is just as important as the others. For example, you can choose to ride a size Large frame and use a 35mm stem and achieve a nearly identical reach as a Medium size frame with a 60mm stem. Each setup can be as capable as the other, while offering a very different feeling ride. Even beyond stem length, depending on how you have answered those questions, you might want to go up or down in size to get the right fit and feel for you and your trails.

In order to reflect those choices, we have updated our sizing chart with a lot more overlap across the size range. We have tried to illustrate the bike sizes we felt would apply to each rider size; but be sure to look at the geometry and make sure the size you are choosing makes sense for your preferences. Everyone is different, plain and simple. The lines have become blurred and there is no strict rule of thumb anymore. When choosing your perfect size, ask yourself these questions, call or email us if you need a second opinion and most importantly... make sure you pick the setup that you feel will be the most fun!
