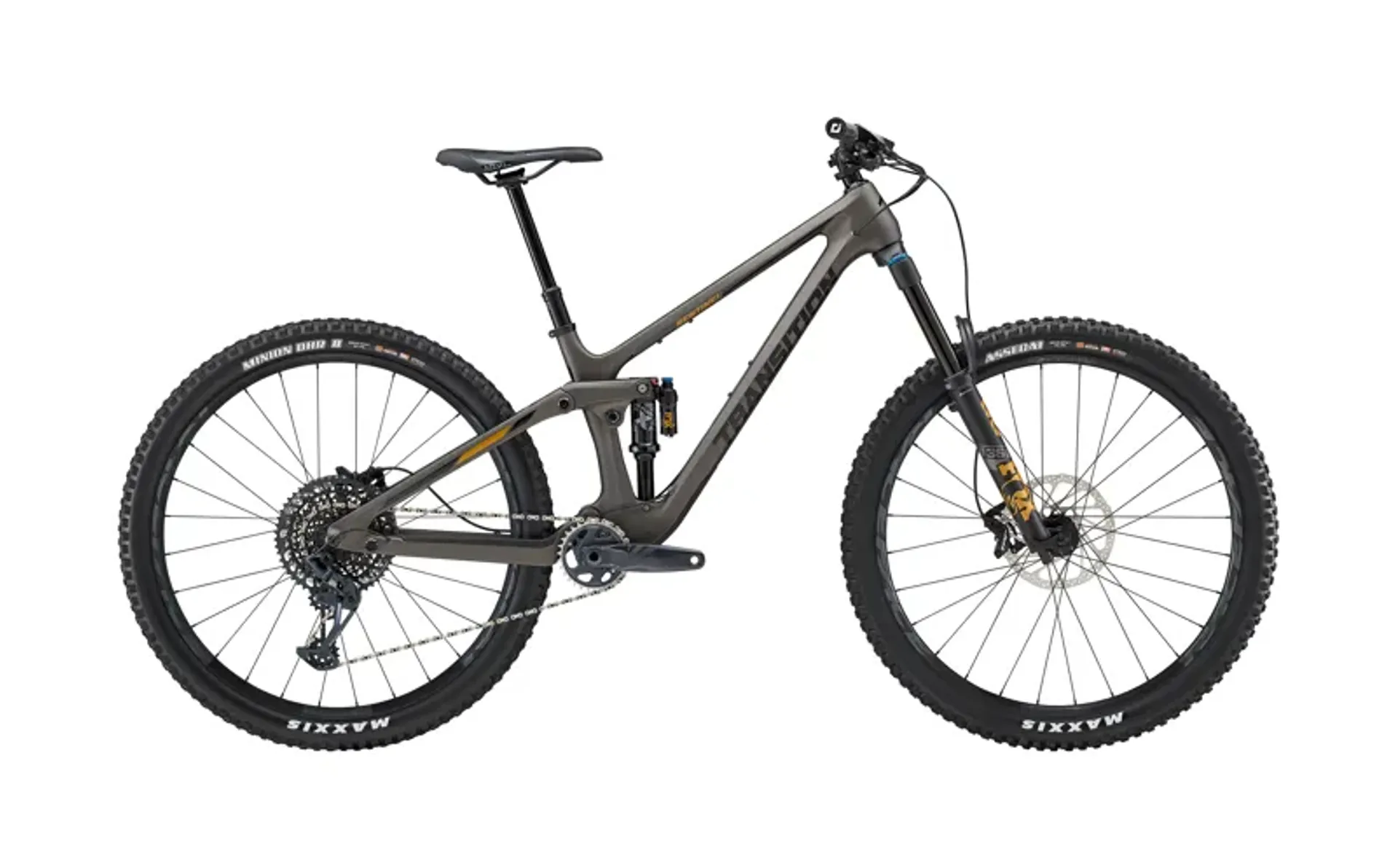

Transition Sentinel Carbon MTB Complete Bike Black Powder

Season:2023

Brand:Transition

Code:redwoPKLBXG.BRC.TNES.22.B

The hard charging all-rounder

the sentinel inspires confidence like you're wearing full body armour.

It's forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you're chasing ews dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you'll find yourself sending lines, jumps and manoeuvres you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.

Specifications
framesentinel carbon 150mm
rear shockfox float x performance elite 2 position
forkfox float 36 grip 2 performance elite
160mm travel/44mm offset
headsetfsa no.57e
stemanvl swage (40mm)
handlebaranvl mandrel alloy 35
sm/md (800x20) lg/xl (800x30) xxl (800x 40)
gripsodi elite flow
saddleanvl forge cromo or
sdg bel air 3
seatpostoneup dropper post
sm (150mm) md (180mm) lg/xl/xxl (210mm)
brakestrp dh-r-evo
rotorstrp r1 2.3 (203mm)
shiftersram GX eagle
derailleursram GX eagle
cassettesram xg 1275 (10-52t)
chainsram GX eagle
cranksram GX eagle dub (30t/170mm)
rimsraceface aeffect r
spokesraceface 2.0/1.7/2.0
hubsraceface trace 28h
tyre/frontmaxxis assegai 3c exo+ (29x2.5)
tyre/rearmaxxis minion dhrii 3c exo+ (29x2.4)
includedtubeless valves & sealant
weight31.7 lbs/14.38 kg (size md)

lifetime warranty

at transition bike we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.

Frame material

the sentinel carbon uses premium japanese toray fibre using a unique latex coated eps moulding process to create tighter edge radius control using less material. The sentinel alloy features a frame made from tough and dependable heat treated 6061 aluminium to strike the right balance of strength, durability and ride quality.

Pivot technology

collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.

Frame protection

we keep your bike rides quiet and your frame safe from damage with fully integrated, flush mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.

Enduro max bearings

we exclusively use enduro max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used tat the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.

Gear accessory mount

out underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.

Mega seatpost insertion

dropper posts keep getting longer so we combine short seat tube lengths with mega seatpost insertion to help you get your saddle completely out of the way.

Tyre clearance

ample clearance for mud and tyres up to 2.6" width.

User friendly cable routing

to simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

Threaded bb

a standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit bb related noises.

Pres in headset

out zs44/zs56 press in headset gives you the freedom to use angle adjust headsets if you feel the need to make your bike a touch slacker or a touch steeper.

Water bottle compatibility

we keep your water bottle clean inside the front triable so you can keep hydrated without worrying about mud making it to your mouth.

Speed balanced geometry

sbg ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With sbg, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of sbg's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

Speed Balanced Geometry

Smallmediumlargex largexx large
a. Reach420450476501521
b. Stack613622631640649
c. Effective tt length552585613641665
d. Seat tube length350390430460490
e. Effective st angle78.277.576.976.476.0
saddle height for effective st angle600660720780820
actual st angle70.870.870.870.870.8
seat tube offset at bb8787878787
f. Head tube length100110120130140
g. Head tube angle63.663.663.663.663.6
h. Chainstay length440440440440440
f. Head tube length11991233126312921316
j. Bottom bracket drop2929292929
k. Estimated bb height346346346347347
l. Stand over height671688700712722
m. Fork offset4343434343
Sizing Information

Transition Trail bike sizing

Approx rider height range:

5'2"-5'6" Small

5'6"-5'10" Medium

5'10"-6'2" Large

6'2"-6'6" Extra Large

Some sizing notes from Transition:

The days of 120mm stems and 680mm handlebars with bar ends are nearly gone and we feel that an approach to sizing born in that era should go away as well. With progressive trail design and all of the recent changes in bike technology, selecting your frame size is not as cut and dry as it once was. With the huge variety of trail styles, riding styles and bike setup preferences, we would urge you to look beyond your height and inseam to find the right bike size. We want you to have as much fun as possible riding your bike. And in the end we want you to remember, there is no right or wrong size for you (within reason of course).

Take a look at the style of trails you will be riding, and how you would approach them... are they fast and open or tight and technical? Steep or mellow? Do you like to catch air or keep the wheels on the ground? Do you pick the gnarly straight line, or move your bike around on the trail? Did you grow up racing BMX bikes, start off with mountain biking, or get into it from road biking? Want your bike to feel super stable or super agile? All of these factors come into play, and each one is just as important as the others. For example, you can choose to ride a size Large frame and use a 35mm stem and achieve a nearly identical reach as a Medium size frame with a 60mm stem. Each setup can be as capable as the other, while offering a very different feeling ride. Even beyond stem length, depending on how you have answered those questions, you might want to go up or down in size to get the right fit and feel for you and your trails.

In order to reflect those choices, we have updated our sizing chart with a lot more overlap across the size range. We have tried to illustrate the bike sizes we felt would apply to each rider size; but be sure to look at the geometry and make sure the size you are choosing makes sense for your preferences. Everyone is different, plain and simple. The lines have become blurred and there is no strict rule of thumb anymore. When choosing your perfect size, ask yourself these questions, call or email us if you need a second opinion and most importantly... make sure you pick the setup that you feel will be the most fun!
